Nordic nRF54 Series
nRF54L & nRF54H chips and 3rd party modules
Chips
nRF54L Series
The nRF54L Series, including the nRF54L05, nRF54L10, nRF54L15 and nRF54L20, is an advanced ultra-low-power Bluetooth 5.4 SoC featuring a 128 MHz Arm Cortex-M33 processor, 1.5 MB of non-volatile memory, and 256 KB of RAM. It supports Bluetooth LE, mesh, Thread, and Matter, with a high-performing radio offering up to 8 dBm TX power and -98 dBm RX sensitivity. The SoC includes advanced security features, including PSA Level 3 certification and tamper detection. With compact packages and energy-efficient design, it is ideal for applications like AR/VR, smart home, and medical devices.
See the following for more details:
For the full datasheet, see:
nRF54H Series
The nRF54H20 is a powerful, ultra-low power multiprotocol SoC featuring multiple Arm Cortex-M33 processors, RISC-V coprocessors, and extensive memory (2 MB flash, 1 MB RAM). Its standout features include Bluetooth LE, LE Audio, Thread, Matter support, and a best-in-class radio with -100 dBm RX sensitivity and 10 dBm TX power. The chip offers robust IoT security, high-speed peripherals like USB (480 Mbps), and ultra-low power consumption, ideal for wearables, smart home, and medical applications.
See Nordic nRF54H Series for more details on the nRF54H specifications and nRF54H datasheet.
Modules

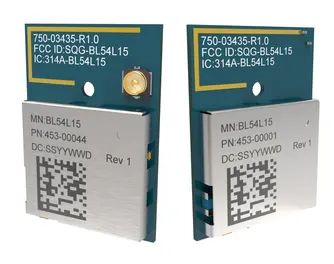

Ezurio BL54L15 Series
The BL54L15 series are based on the Nordic nRF54L15 in a 14 mm x 10 mm x 1.6 mm package.
Fanstel BM15 Series
The BM15 series (BM15C, BM15E, BM15M) are based on the Nordic nRF54L15 in a 10.0 x 14.0 x 2.0 mm package. The 32 MHz xtal, DCDC converter Inductors and capacitors for VDD are integrated.

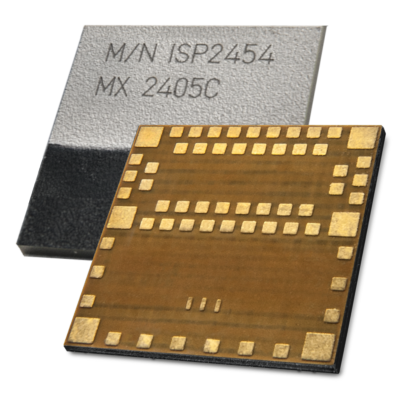

InsightSIP ISP2454 Series
The ISP2454-MX is ultra-compact LGA module, 8 x 8 x 1 mm, is based on the ultra-low power nRF54L15 chip.

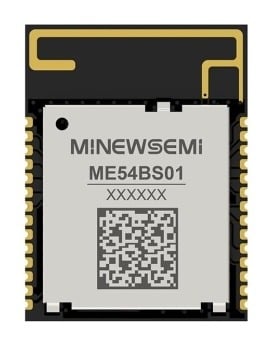

Minew ME54BS01 Series
The nRF54L15-ME54BS01 series are based on the Nordic nRF54L15 in a 23.2 x 17.4 x 2mm package.

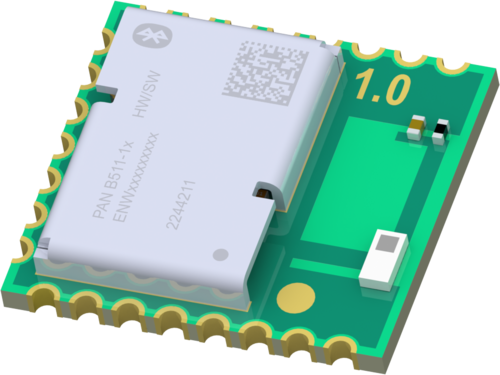

Panasonic PAN B511-1x Series
The PAN B511-1x series are based on the Nordic nRF54L15 in a 10.35 x 9.6 mm package.

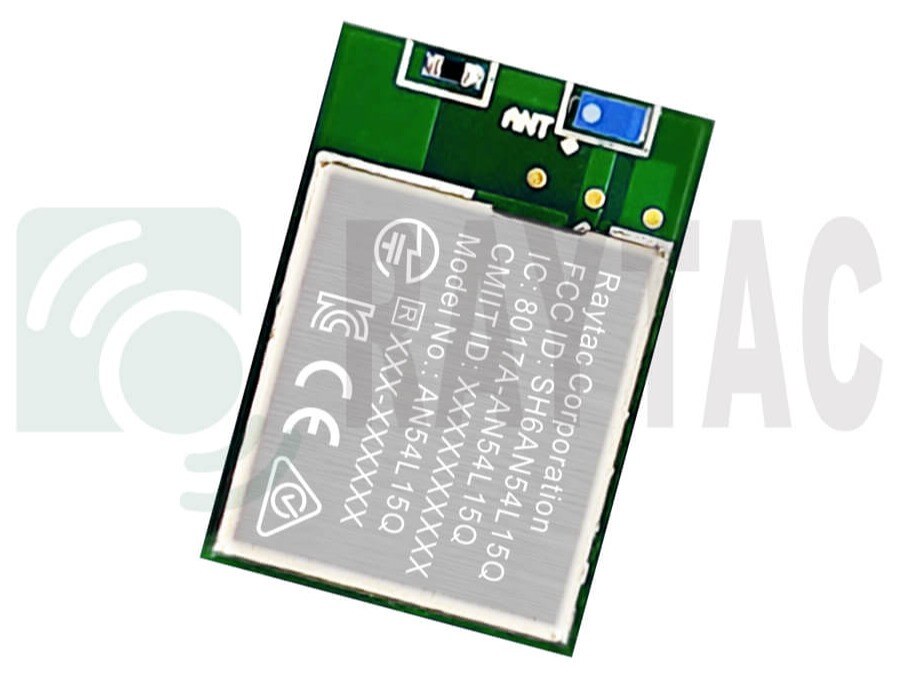

Raytac AN54L15Q Series
The AN54L15Q series (AN54L15Q, AN54L15Q-P, AN54L15Q-U) are based on the Nordic nRF54L15 in a 9.5 x 13.7 x 1.6mm package.

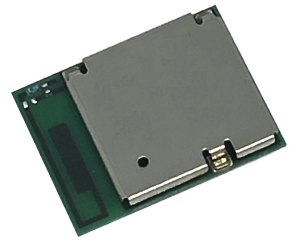

KAGA FEI EC4L15BA1 & ES4L15BA1 Series
The EC4L15BA1 series are based on the Nordic nRF54L15 in a 9.6 x 12.9 x 2.0 mm package. The ES4L15BA1 is available in an even smaller 3.25 x 8.55 x 1.00 mm package.
See KAGA FEI EC4L15BA1 Modules and KAGA FEI ES4L15BA1 Modules.

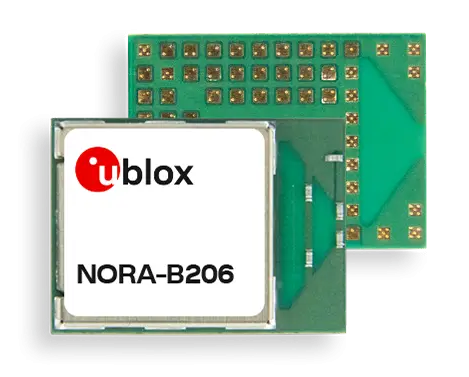

u-blox NORA-B20 Series
The NORA-B20 series (NORA-B201, NORA-B206) are based on the Nordic nRF54L15 in a 10.4 x 11.2 x 1.9 mm package.
Blecon Support
All these chips and modules can support the Blecon Modem firmware.
For more details, see Blecon Integration
